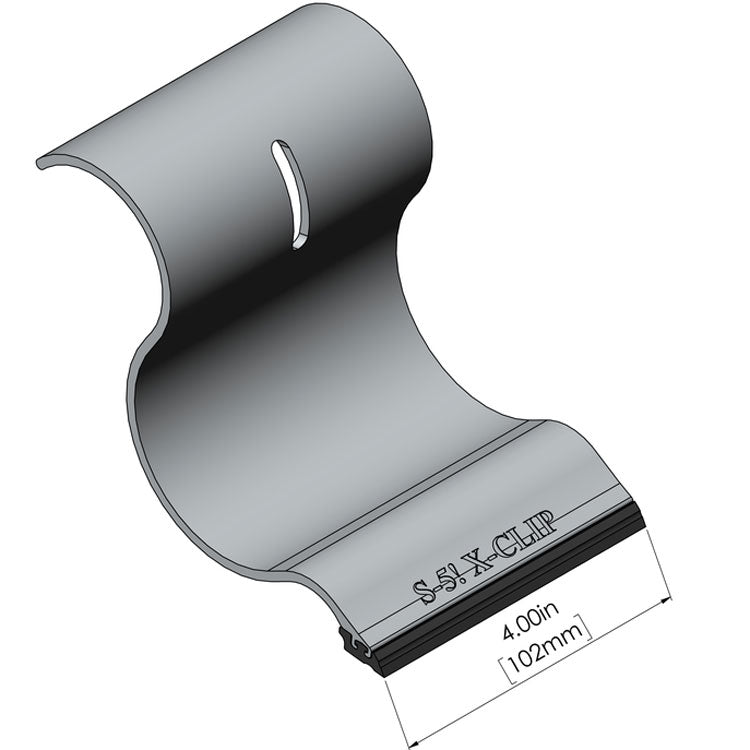

S-5!® X-Clip III™

Our S-5!® X-Clip III™ retards snow sliding under crossmember. Integrated rubber “foot” prevents abrasion of panel finish.

S-5!® X-Clip III™ is designed for seam heights of 2″ (51 mm) up to 3″ (76 mm). It should not be used on 3” horizontal seams.

• NEX® pipe crossmember spans up to 4’
• Proprietary octagonal crossmember prevents rotation and is much stronger than a conventional round pipe
• Finished system height above panel is 7” - 9” depending on seam dimension
• Double-clamp design for each bracket
• Compatible with standard S-5! clamps
• Can be painted, powder-coated or anodized
• 8’ nominal pipe length for easy shipping and handling
• Comes with an easy-to-use, engineered splice kit
• X-Clip retards snow migration beneath the system, extending all the way to the roof surface using a EPDM rubber foot for protection
