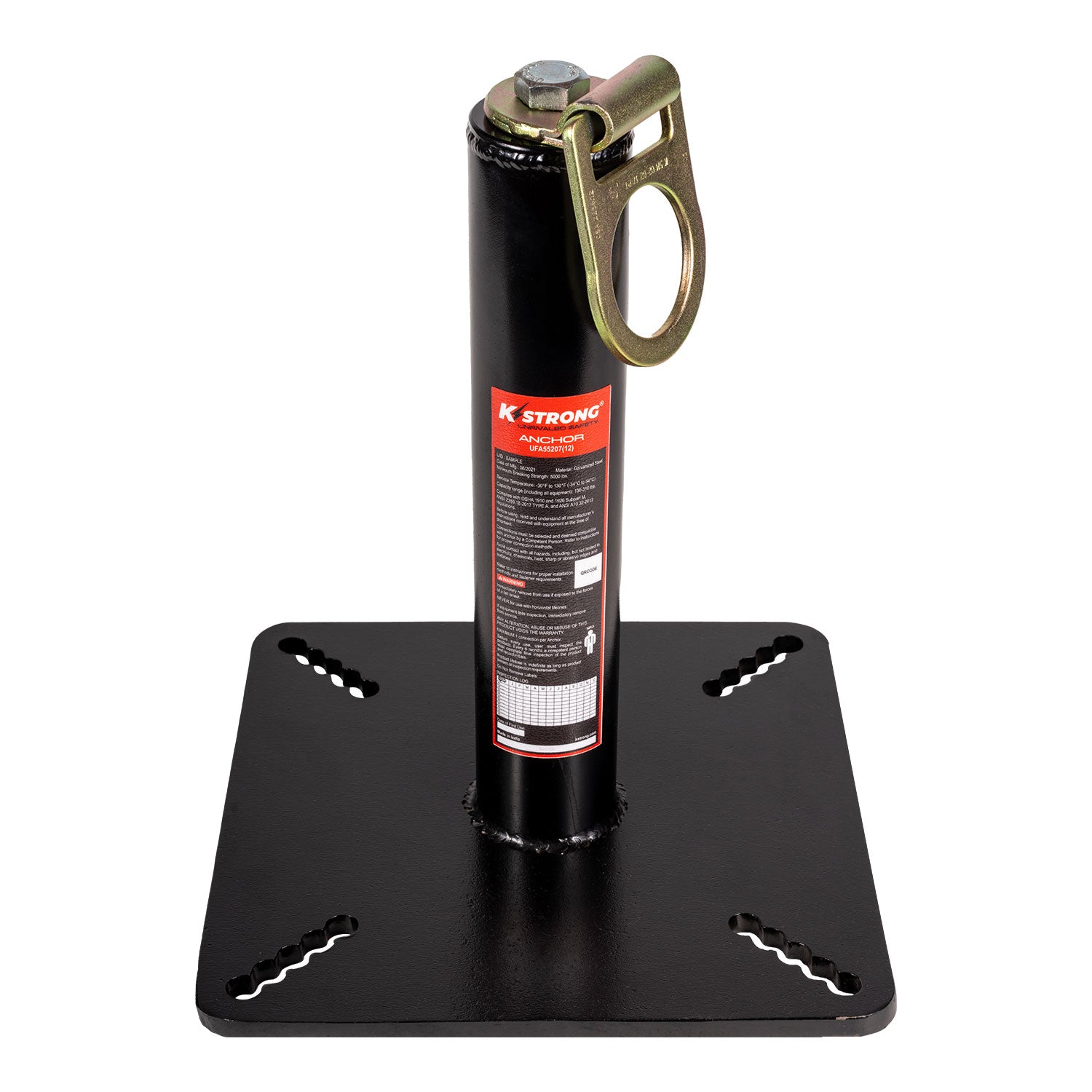

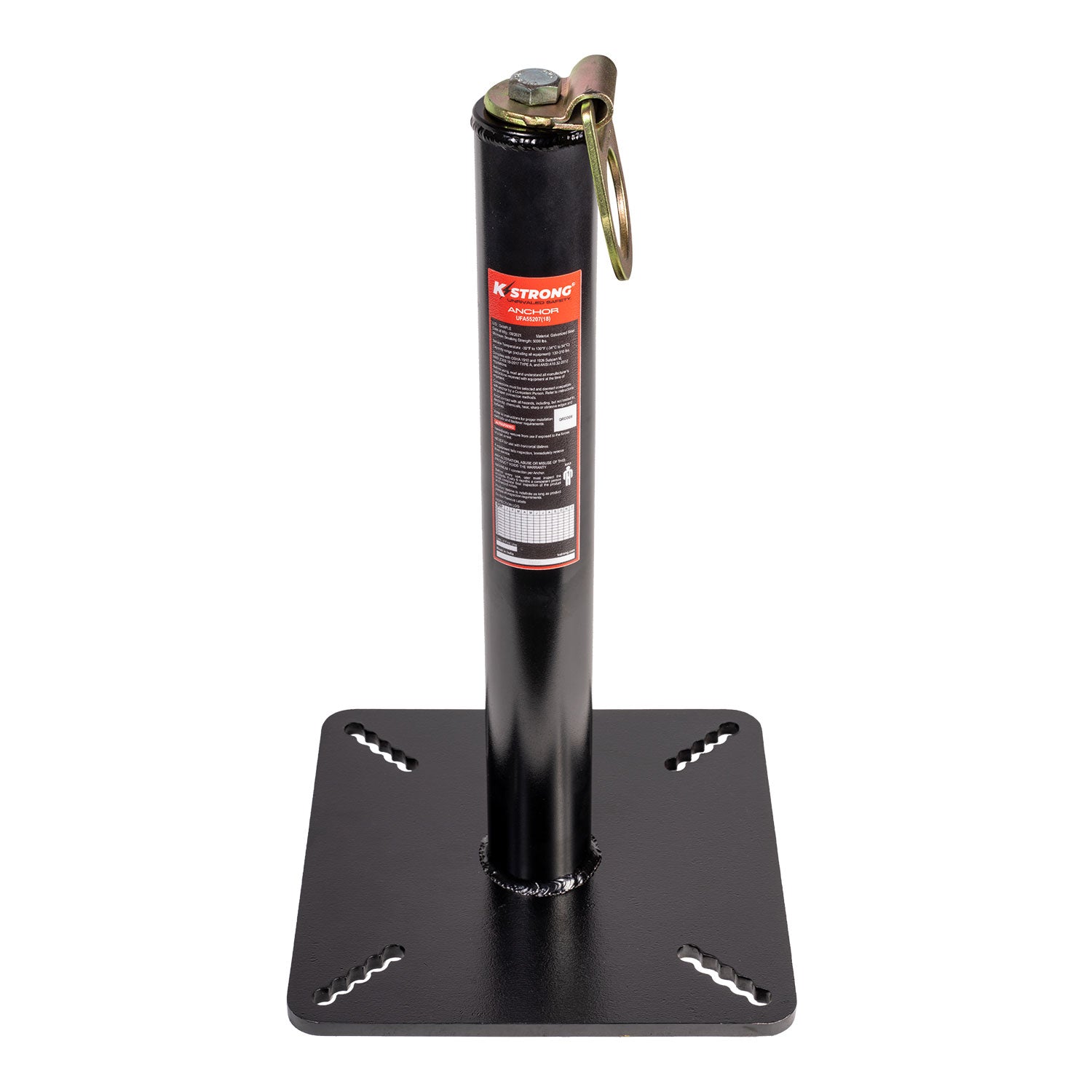

KSTRONG® Riser Post Roof Anchor (ANSI)

KSTRONG® Riser Post Roof Anchor (ANSI)

Design:

• Anchor designed to be fixed on metal I Beam to install horizontal lifeline
• The base have an adjustable opening to adopt to the type of Beam section
• Easy and quick to install with help of nut & bolt (M12)
• Post comes with a pre-installed D-ring to make connections

Length (L) two sizes:

• 12 in. (304.8mm)
• 18 in. (457.2mm)

Compatible with minimum flange width: 5.91 in. (150mm)

Compatible with maximum flange width: 8.66 in. (220mm)

Material: Alloy steel

Finish: ED Coated black

System strength: 23 kN

Relevant Standards: Meets or Exceeds ANSI / ASSE Z359.18-2017 Type A
