S-5!® 2.0 EdgeGrab™ accommodates PV frame thicknesses of 30–48 mm (if the L-flange is positioned below the stud’s hex nut) and 34–51 mm (if the L-flange is positioned above the stud’s hex nut)
S-5!® 2.0 EdgeGrab™ uses the same PV Kit base assembly as the universal PV grab and will work on most exposed-fastened and corrugated metal roofs

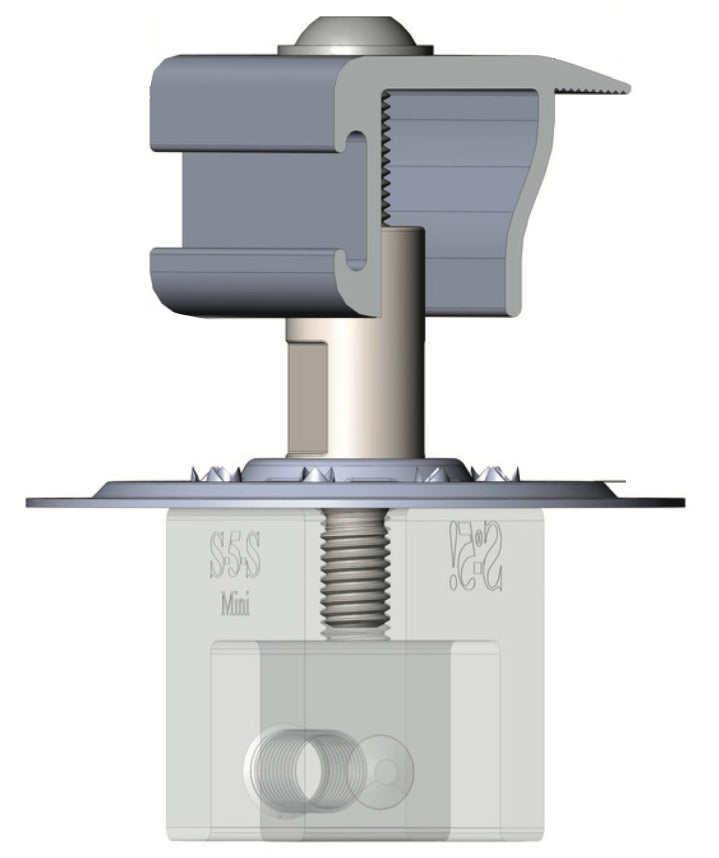

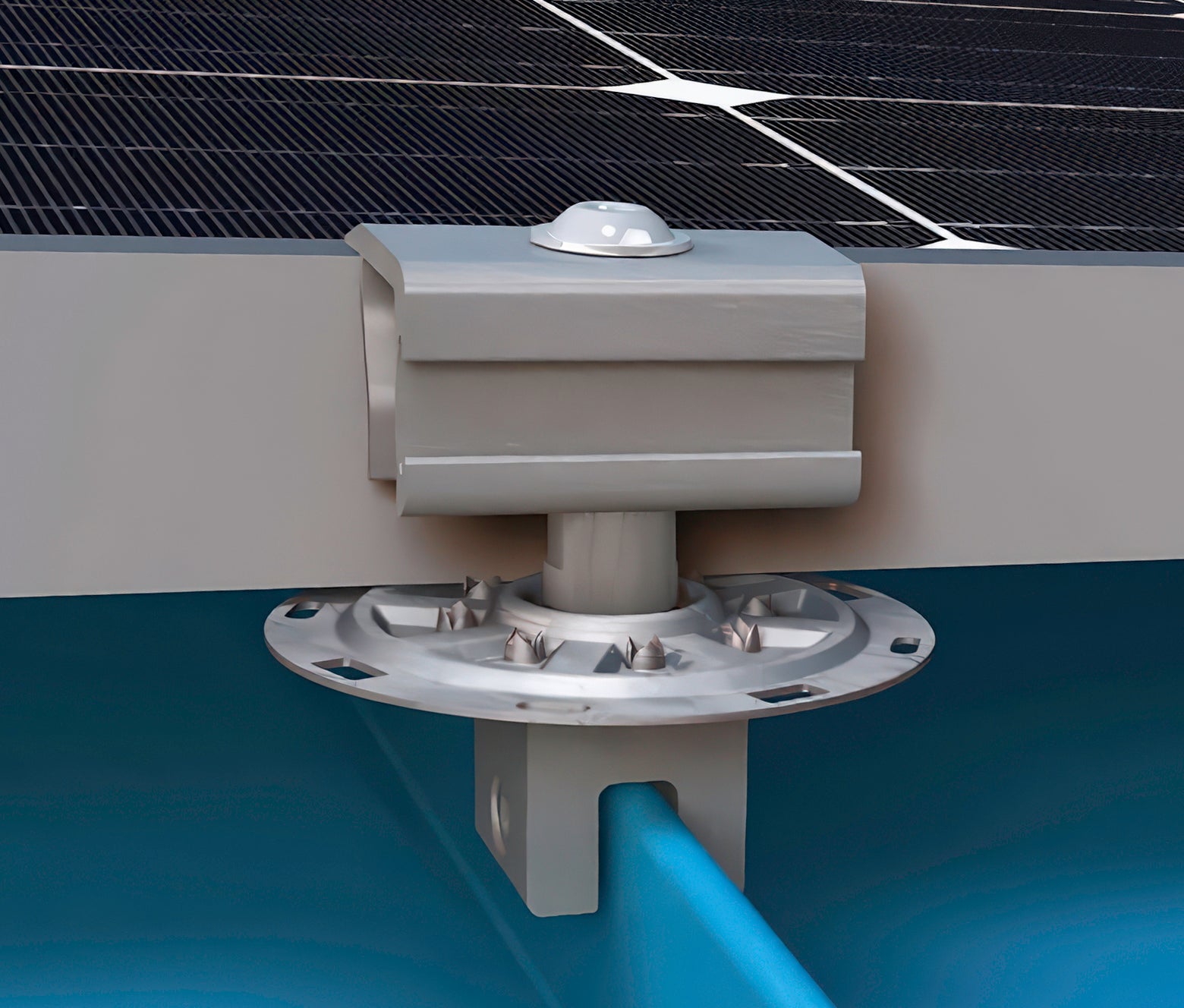

The new S-5!® 2.0 EdgeGrab™ is designed specifically for end conditions. Used at edges of array to attach modules to rooftop clamp or bracket leaving a clean finished look
- Compatible with all S-5! clamps and brackets
- Pre-assembled components
- UL 2703 listed ground path is automatic
- Multiple slots for wire ties
- Allows load reduction per ASCE-7
