Our S-5-H Clamps unique two-piece design allows for attachment anywhere along the length of the rib, making installation fast and easy
It's unique in that it allows for attachment to a horizontal seam on the vertical leg of the seam
Our S-5-H Clamp is a non-penetrating 2 piece-clamp for large horizontal seams, it was specifically developed to accommodate standing seam panels with horizontal seams
Our patented setscrews will slightly dimple the metal seam material but will not puncture it—leaving roof manufacturers' warranties intact
S-5-H Clamps have been tested for load-to-failure results on a variety of horizontal standing seam roof profiles from leading panel manufacturers and demonstrate exceptional holding load strength
Our S-5-H Mini Clamp is a bit shorter than the S-5!® H Clamp and has one setscrew rather than two
The mini is the choice for attaching all kinds of rooftop accessories: signs, walkways, satellite dishes, antennas, rooftop lighting, lightning protection systems, solar arrays, exhaust stack bracing, conduit, condensate lines, mechanical equipment
S-5-H and S-5-H Mini Clamp are each furnished with the hardware is stainless steel. Each box also includes a bit tip for tightening setscrews using an electric screw gun. The structural aluminum attachment clamp is compatible with most common metal roofing materials excluding copper

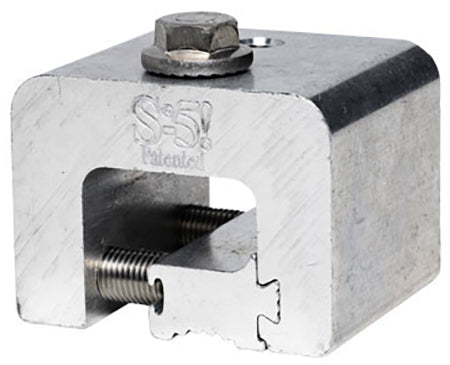

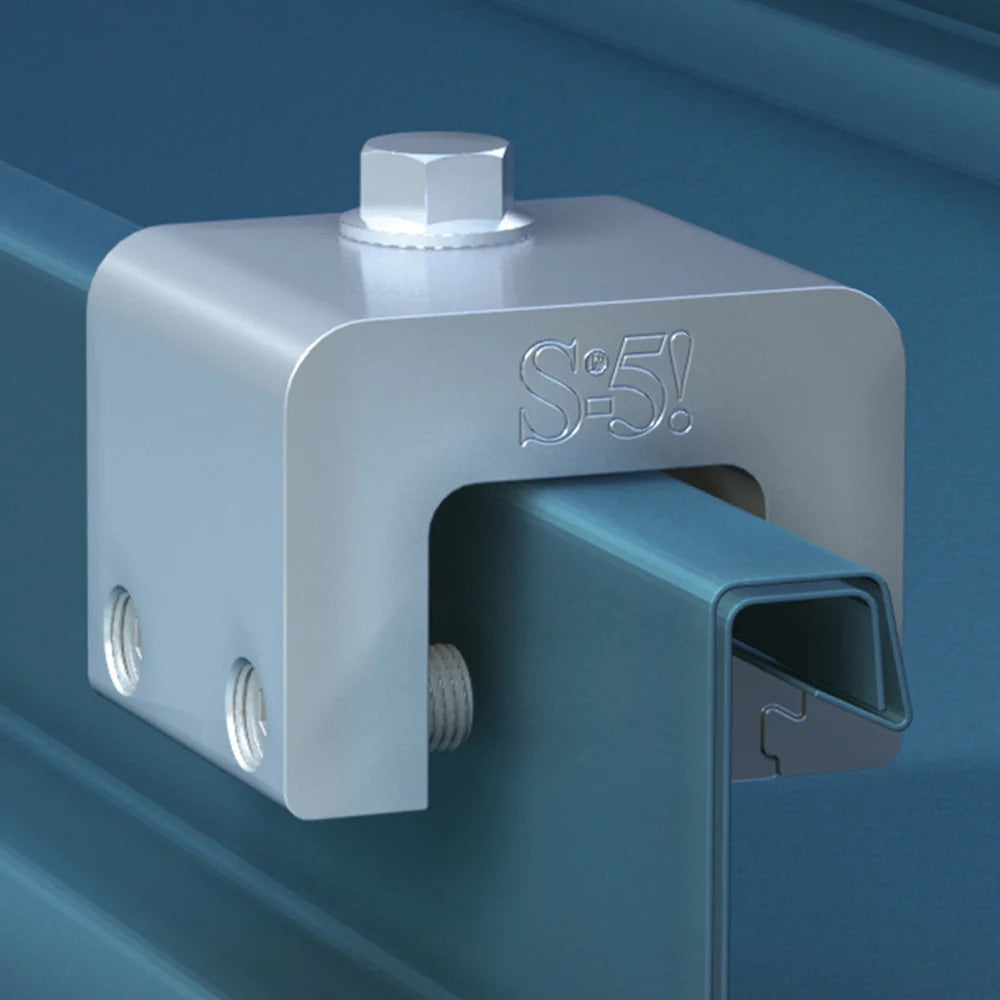

S-5-H Clamps
For standing seam panels with horizontal seam orientation (single-folded)
The S-5!® H Clamp was specifically developed to securely and cost-effectively accommodate metal roof panels with a horizontal seam not fully closed
Two-piece design allows for easy attachment anywhere along seam length
Insert allows clamp to fit over wider horizontal seams up to .75” (19 mm)
The clamp is perfect for use with S-5!® ColorGard snow retention system and other heavy-duty applications.
Two T-30 Torx round-point setscrews (Torx bit tip provided)
One M8 bolt included

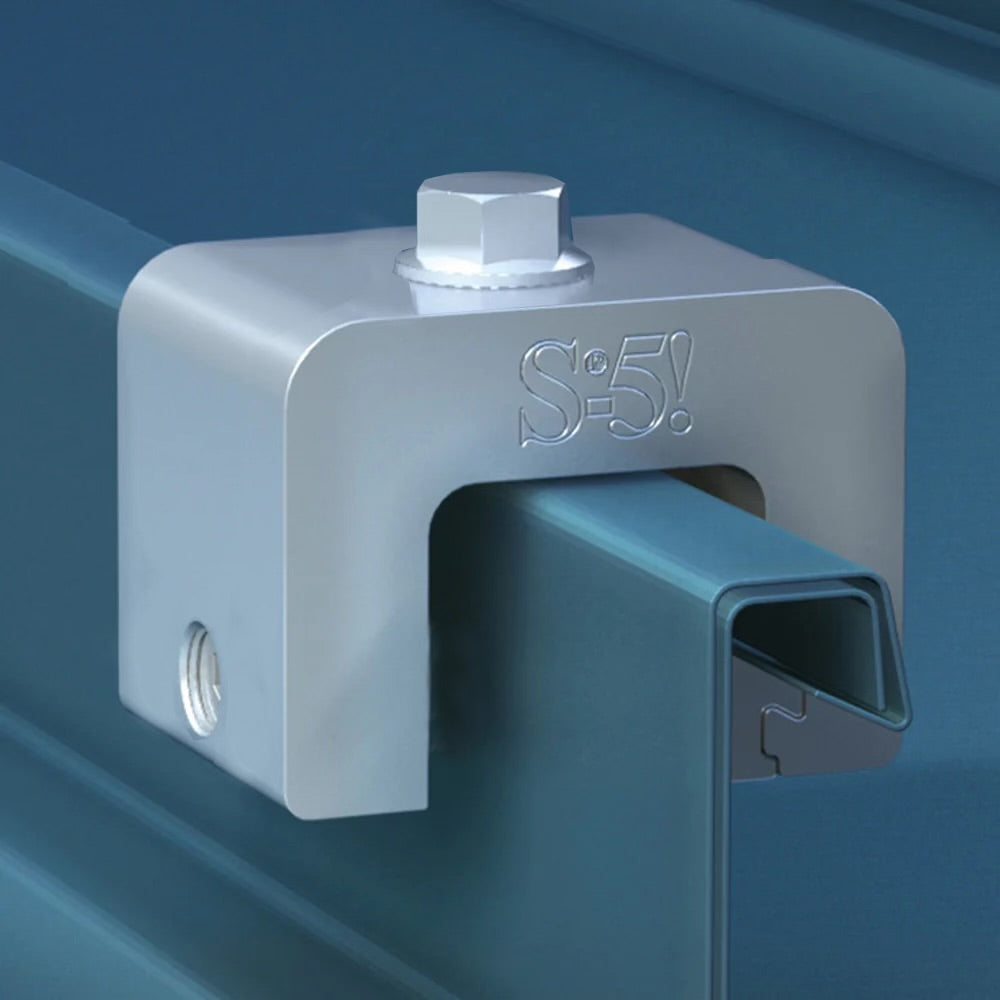

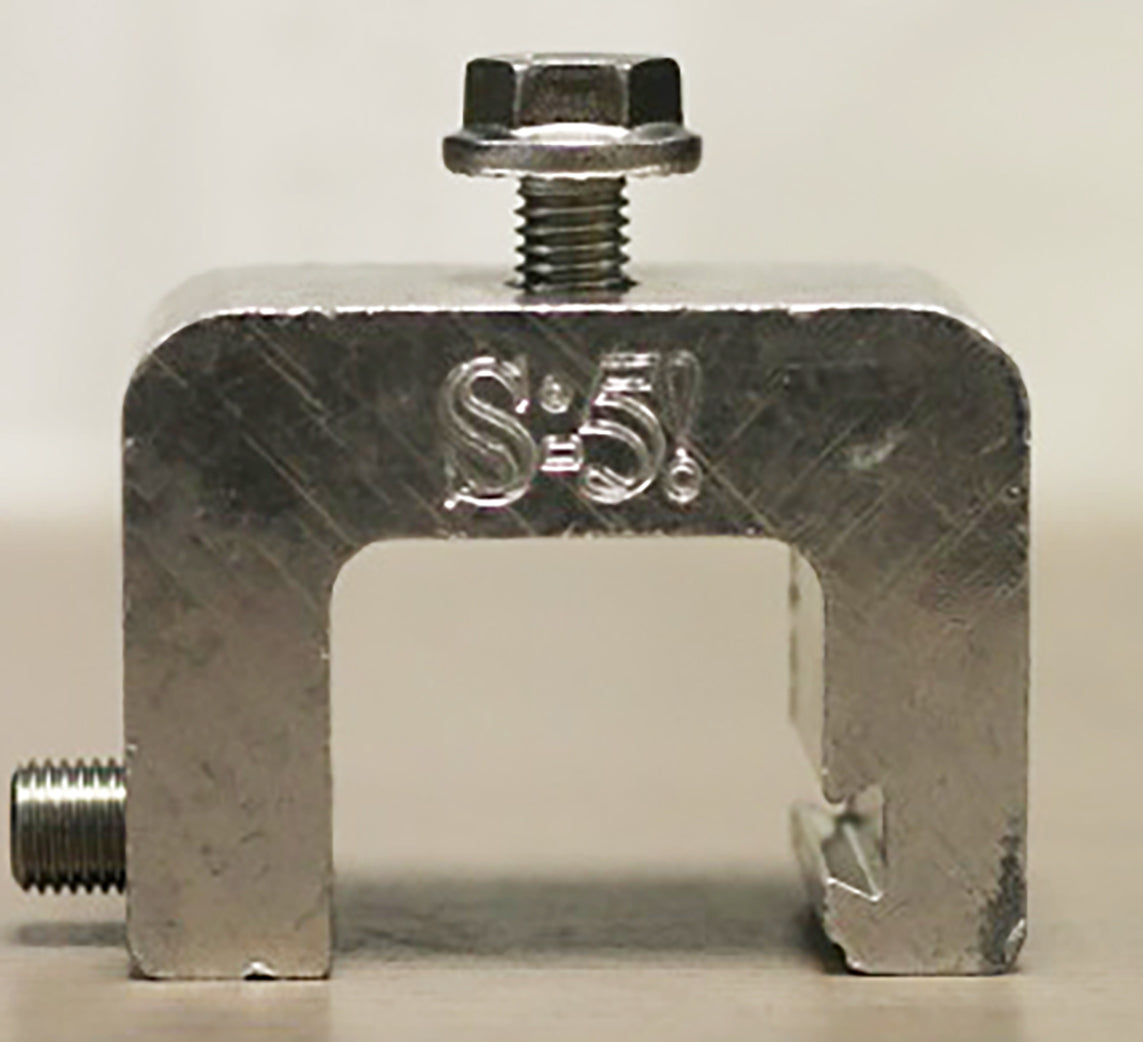

S-5-H Mini Clamps
For standing seam panels with horizontal seam orientation (single-folded)
Accommodates roof panels with a horizontal seam that is not fully closed
Two-piece design allows attachment anywhere along length of seam
Insert allows clamp to fit over wider horizontal seams up to .75” (19 mm)
Smaller than the standard S-5!® H Clamps
One T-30 Torx round-point setscrew (Torx bit tip provided)
