S-5!® T Clamps

S-5!® T | S-5!® T Mini

Our S-5-T Mini Clamp is more economical solution for lighter-duty attachments

All standard and mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps

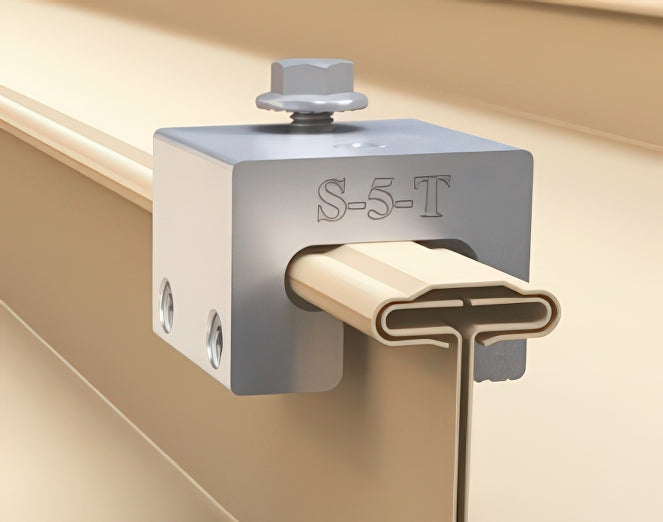

S-5-T

• Developed for profiles featuring a T-shaped seam configuration with a horizontal dimension ≤ 1.3” (33 mm)
• Two-piece design allows the clamp to be placed over the top of the seam at any desired location
•  This non-penetrating, standing seam metal roof clamp can also be used on or profiles with a horizontal projection of 5/8” (15 mm) or less.
• Works on architectural “angle-seam” or architectural “single-folded” paneling.
• Heavy-duty applications including snow retention

• Two T-30 Torx round-point setscrews (Torx bit tip provided)
• One M8 bolt included

S-5-T Mini

• Developed for profiles featuring a T-shaped seam configuration with a horizontal dimension ≤ 1.3” (33 mm)
• Two-piece design allows the clamp to be placed over the top of the seam at any desired location
• Fits architectural single-fold (or “angle-seam”) and horizontal seam with horizontal dimension ≤ 5/8” (15 mm)
• Light and medium-duty applications, like utility mounting
• Smaller than the standard S-5!® T
• One T-30 Torx round-point setscrew (Torx bit tip provided)
• M8 bolt not included
