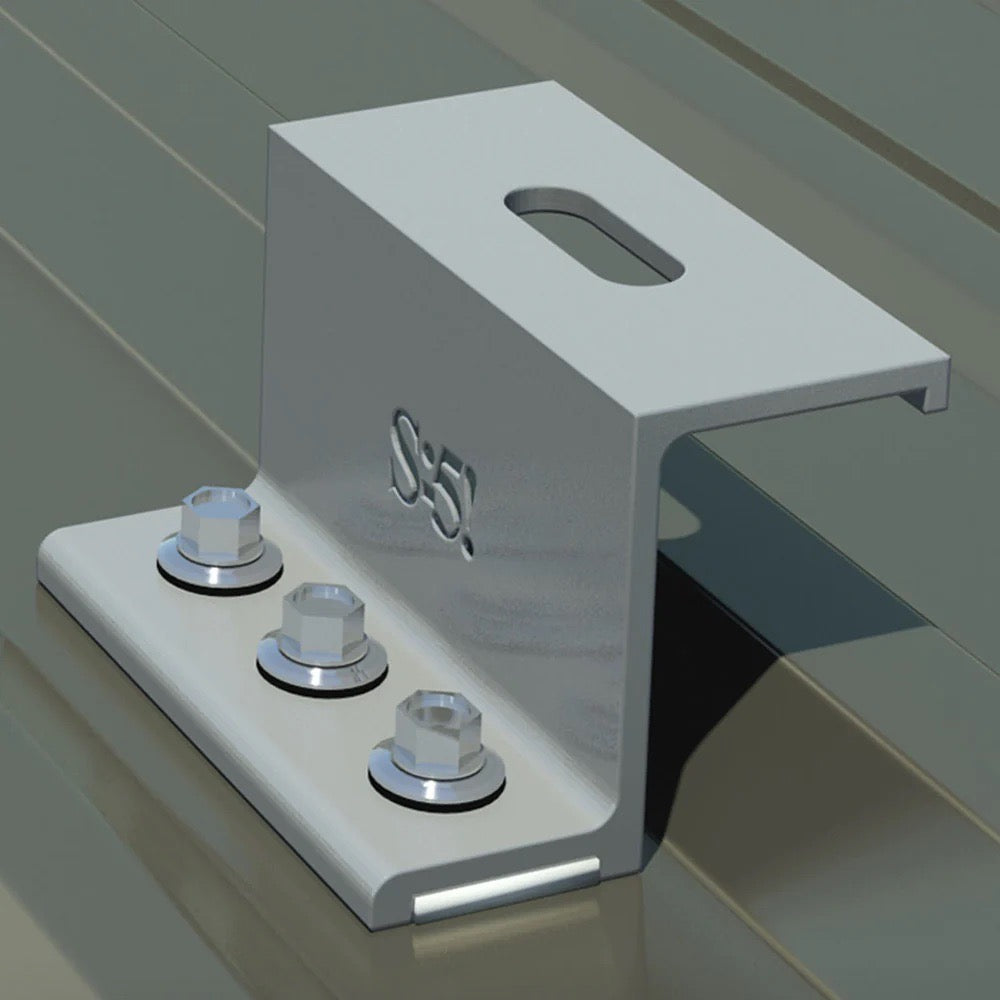

S-5!® VersaBracket 47

Our S-5!® Versabracket 47 is mounted in the flat of the panel, directly into the supporting structure of the roof, i.e., wood decking, wood or steel purlins, or trusses

S-5!® VersaBracket 47 comes with pre-installed premium butyl sealant and is designed for mounting with our S-5!® ColorGard

 S-5!® VersaBracket is also compatible with our S-5!® PVKIT and utility mounting

•  Available in two heights 1.86 in (47 mm) and 2.65 in (67 mm),S-5!® VersaBracket features a 1” (25 mm) mounting slot on the top flange for adjustability
• Horizontal mounting face comes with 1” (25 mm) slot on top for M8 bolts

• Design uses a “triple-seal” for watertight assurance

S-5!® VersaBracket 47 fastens through the roof, into the deck or structure using our S-5!® specified Metal to Metal or Metal to Wood fasteners
