S-5!®

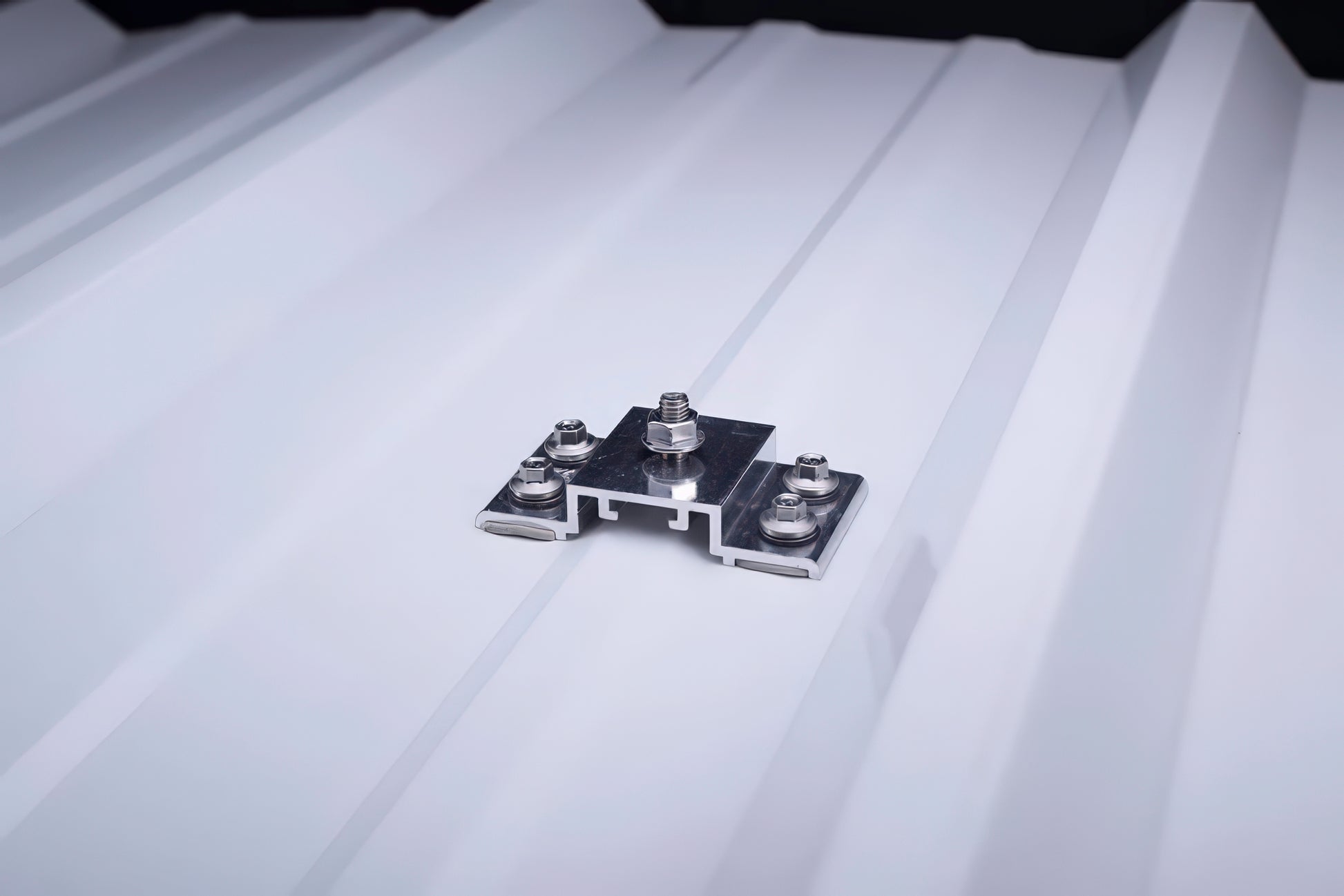

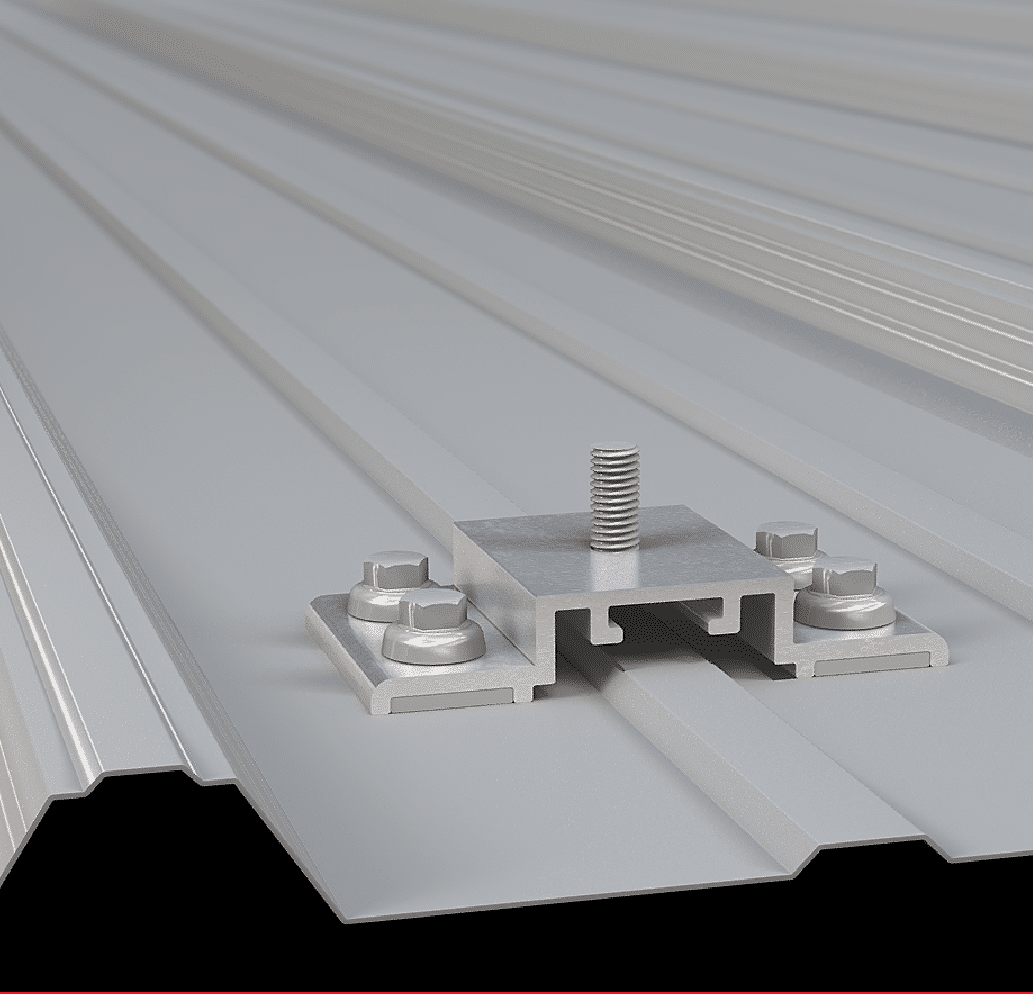

S-5!® SolarFoot
S-5!® SolarFoot
Couldn't load pickup availability
Our S-5!® SolarFoot is for exposed fastener metal roofing with the strength, testing, quality, and time-proven integrity you expect from S-5!®
S-5!® SolarFoot provides an ideal mounting platform to attach the L-Foot (not included) attachment of a rail-mounted solar PV system
This solution is 'The Right Way' to secure rail-mounted solar systems to exposed fastener metal roof panels
The unique design is compatible with all rail producer L-Foot components
S-5!® SolarFoot ensures a durable weathertight solution
Special factory applied butyl co-polymeric sealant allows a water-tested seal
Stainless integrated stud and hex flange lock-nut secure the L-Foot into position
A low center of gravity reduces the moment arm
Direct attachment of the S-5!® SolarFoot to the structural member or deck provides superior holding
- S-5!® aluminum and stainless components are 25yr manufacturer warranty
- Compatible with all commercial L-Foot products on the market
- Factory applied 40-year isobutylene/ isoprene crosslink polymer sealant for reliable weathertightness
- Sealant reservoir to prevent over-compression of sealant
- Load-to-failure tested Normal to Seam by a nationally accredited laboratory on numerous metal roof materials and substrates
- Four points of attachment into structure or deck with tested holding strength for engineered applications
- Integrated S-5!® M8-1.25x17mm stud and S-5!® M8-1.25 stainless steel hex flange nut included
SolarFoot Advantages:
- Exposed fastener mounting platform for solar arrays attached via L-Foot and Rails
- Weatherproof attachment to exposed fastener roofing
- Butyl sealant reservoir provides long-term waterproof seal
Tool: 13 mm Hex Socket
Tool Required: Electric screw gun with hex drive socket for self-tapping screws
SolarFoot Features:
- Manufactured in the U.S.A. from certified raw material
- Fabricated in ISO 9001:2015 certified factory
