S-5!® X-Gard™ 2.0

S-5!® X-Gard™ 2.0- Snow Guards for Standing Seam Metal Roof

The most robust two-pipe system on the market. If bigger is better, then this is the best system in our snow guard arsenal.

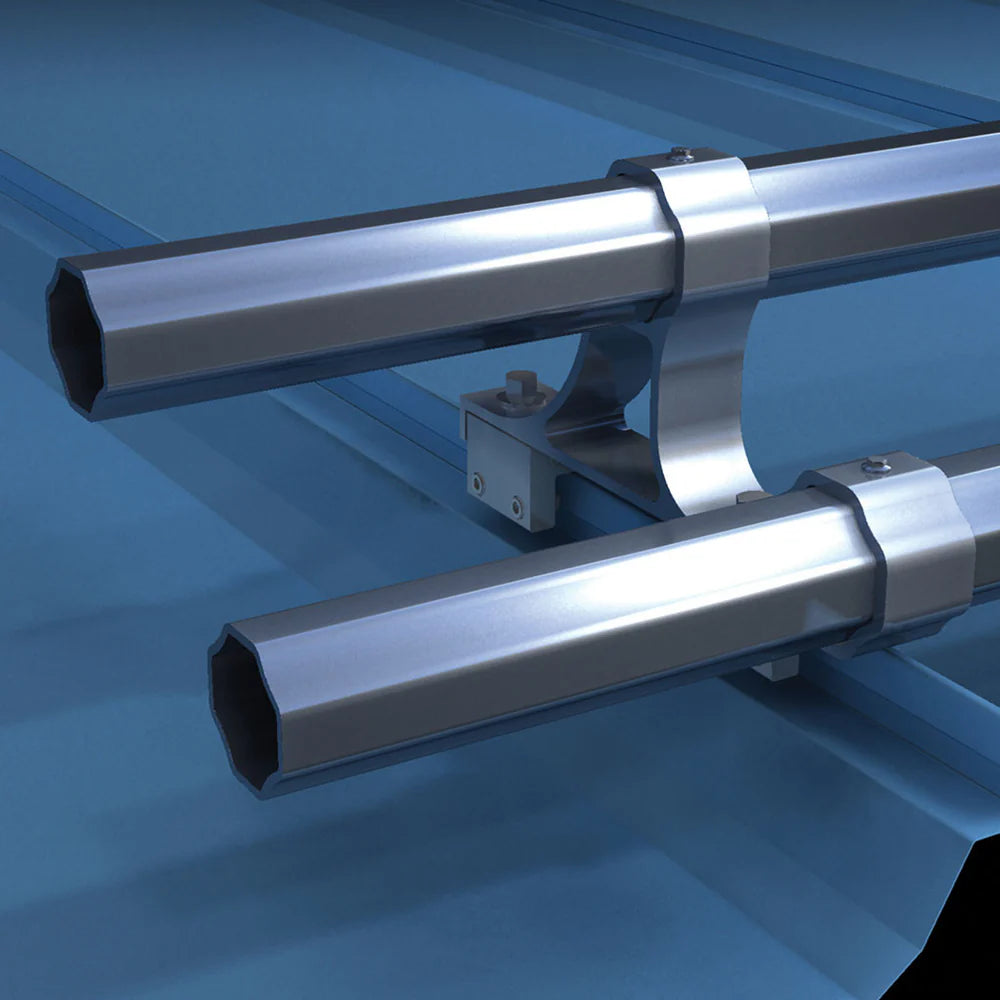

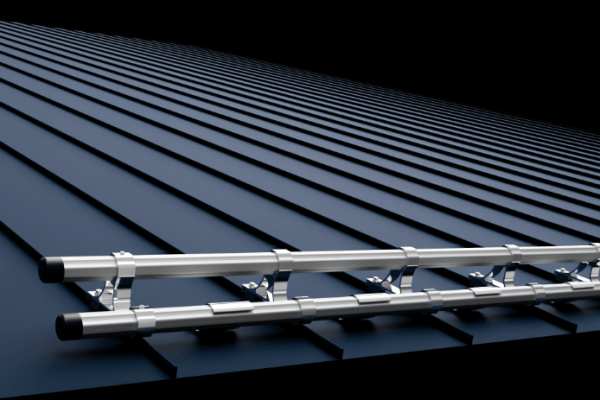

S-5!® X-Gard™ 2.0 is mechanically attached with patented round-point setscrews, gripping the seam securely without penetration and without damage to the panel’s protective finishes. Roofs that collect large amounts of snow require tougher performance. S-5!® X-Gard™ 2.0 provides that heavy-duty, engineered assurance your project may need. This two-pipe, snow guard system is easily retrofitted to existing roofs or can be incorporated in new construction design. S-5!® X-Gard™ offers you a non-penetrating standing seam, snow guard system designed for heavy-duty, multi-pipe applications. It is also an ideal solution for use on solar PV roofs when extra height is required. X-Gard’s proprietary 8-sided NEX® 2” pipe provides superior beam strength compared to other crossmembers. Its unique pipe shape is formed from high-tensile aluminum.

Benefits:

• The strongest snow retention system on the market
• Perfect for insulated metal panel (IMP) roofs with seam spacing of 36” - 48”
• Roof warranties left intact with this zero-penetration system for standing seam roofs
• Low-cost, job-specific P.E. wet stamp available
• Engineer a system with B.O.M. for any site-specific roof with the online S-5! Snow Guard Calculator

X-Gard 2.0 Features:

• NEX® pipe crossmember spans up to 4’
• NEX pipe has the ability to cantilever up to 20" past the last clamp in an assembly
• Proprietary octagonal crossmember prevents rotation and is much stronger than a conventional round pipe
• Finished system height above panel is 7”-9” depending on seam dimension

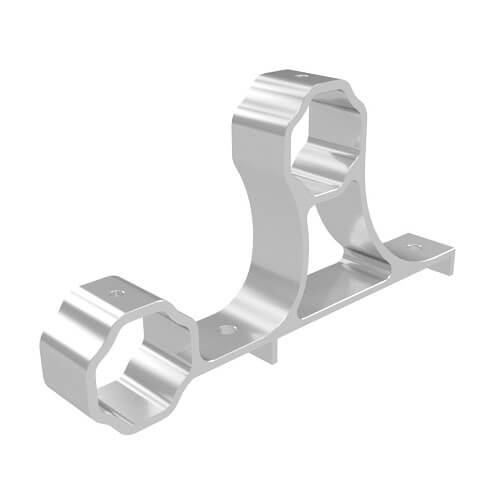

• Double-clamp design for each bracket
• Compatible with standard S-5! clamps
• Can be painted, powder-coated or anodized
• 7’ 8" nominal pipe length for easy shipping and handling
• Comes with an easy-to-use, engineered splice kit
• X-Clip retards snow migration beneath the system, extending all the way to the roof surface using a EPDM rubber foot for protection
